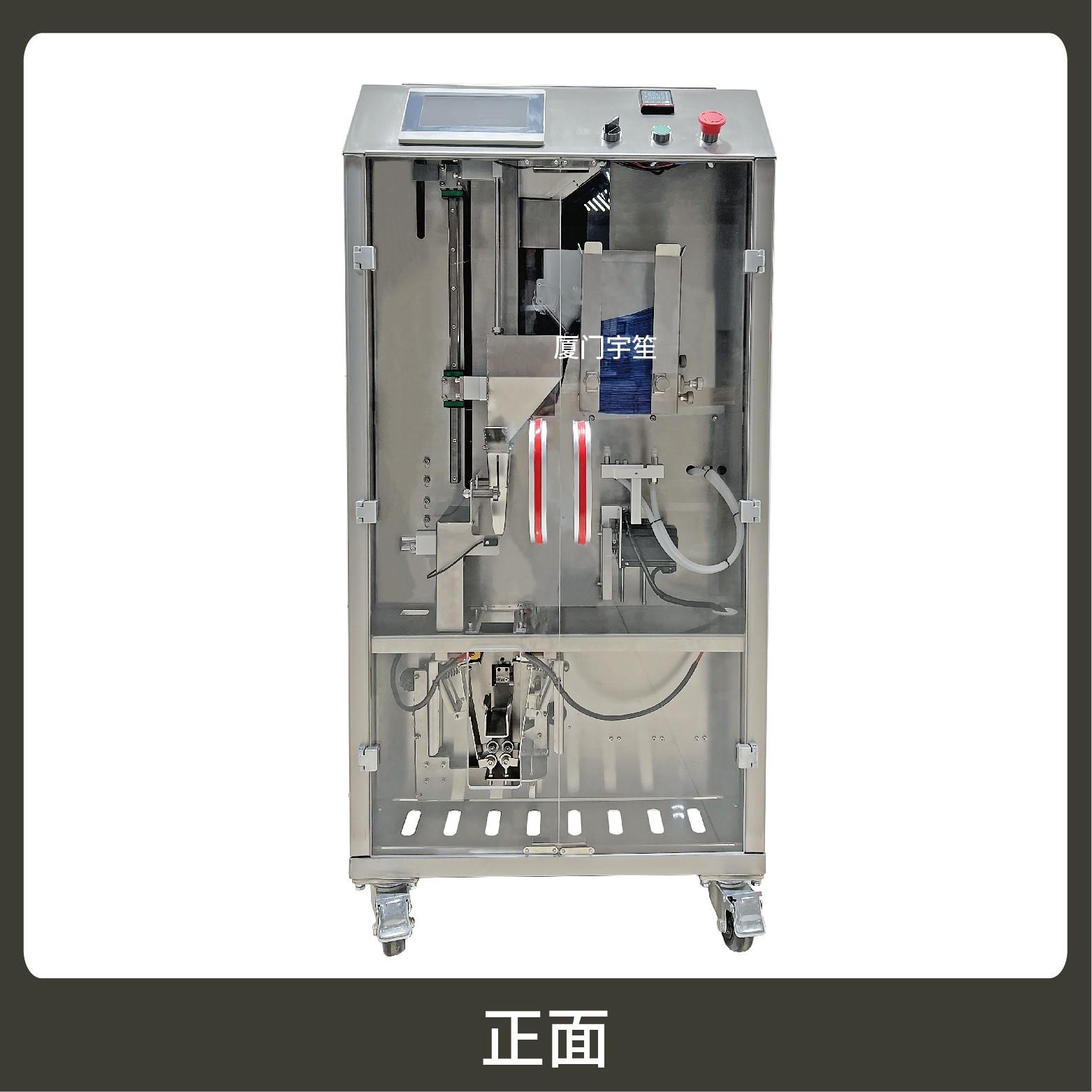

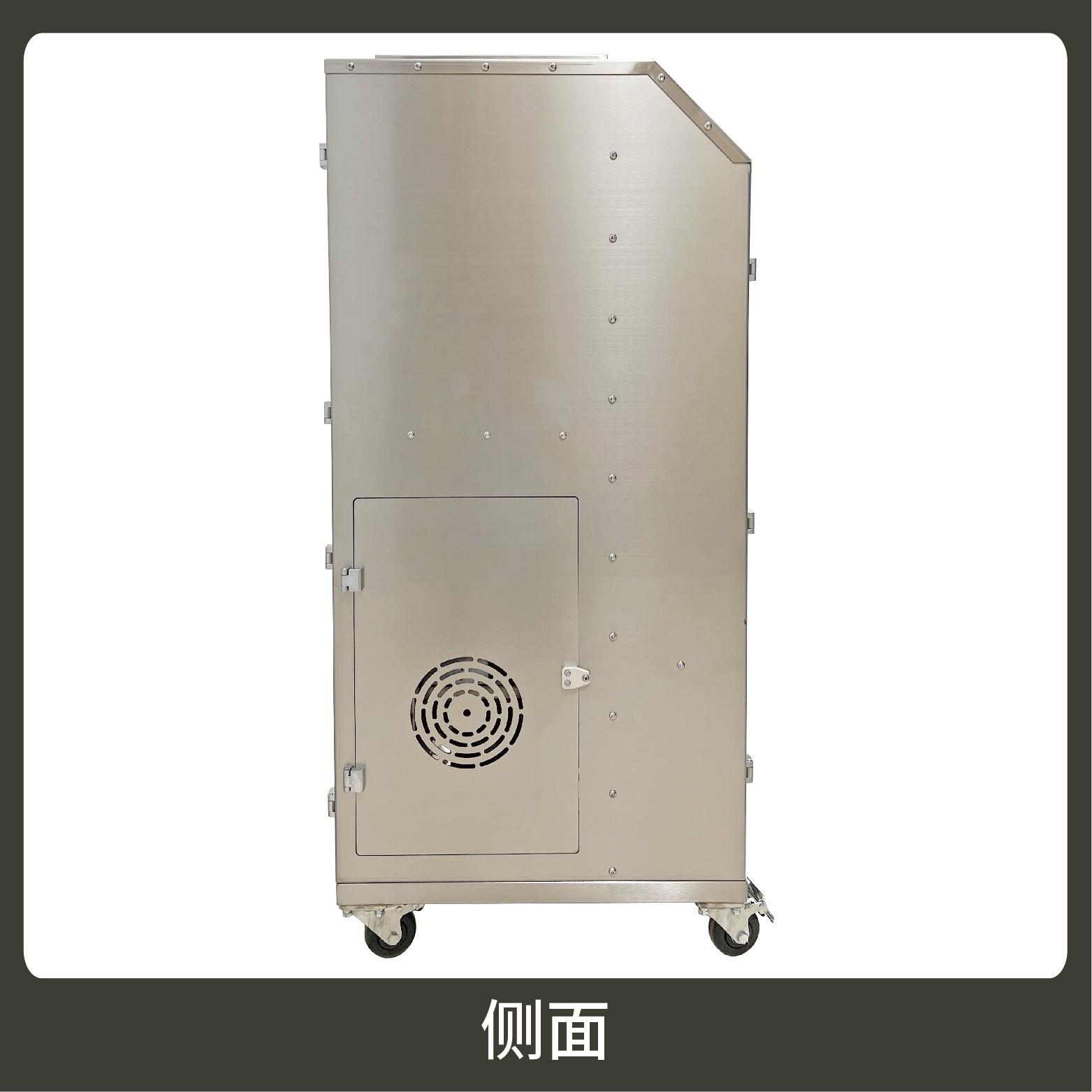

YS-686純電動茶葉包裝機

特  點 Characteristic

1、 本機適用于茶葉、藥茶、保健茶、咖啡等小顆粒物的一次性包裝。

 The machine is suitable for one-time packing of small particles such as tea,medicinal tea,health tea,coffee and so on.

2、 采用溫控器控制封口溫度，可保證封口平整，提高成品率。采用PLC控制器控制整機動作，觸控式熒幕操作界面，操作方便。

The sealing temperature controller is adjusted by PID,ensure each sealing is flatly, increase the yield .Overall machine movement was controlled by PLC, touch sereen operation interface， easy to operate.

3、 具有計量準確、操作簡單。

High capacity，accurate measuring，easy operation.

4、 包裝材料：復合膜（預制袋）。

Packaging materials：composite film.

技術參數Technical Parameters

計量范圍：1 - 10g

Measuring Scope

制袋尺寸范圍 (Range)：(50~65)*(85~130)mm

Bag size

包裝速度：7- 12 bags/min

Packing Speed

外型尺寸: 790*560*1620mm

Dimension ( L *  W  *  H )

整機重量：150kg Weight

總 功 率：AC220V / 50HZ / 1.5KW

Toal power
