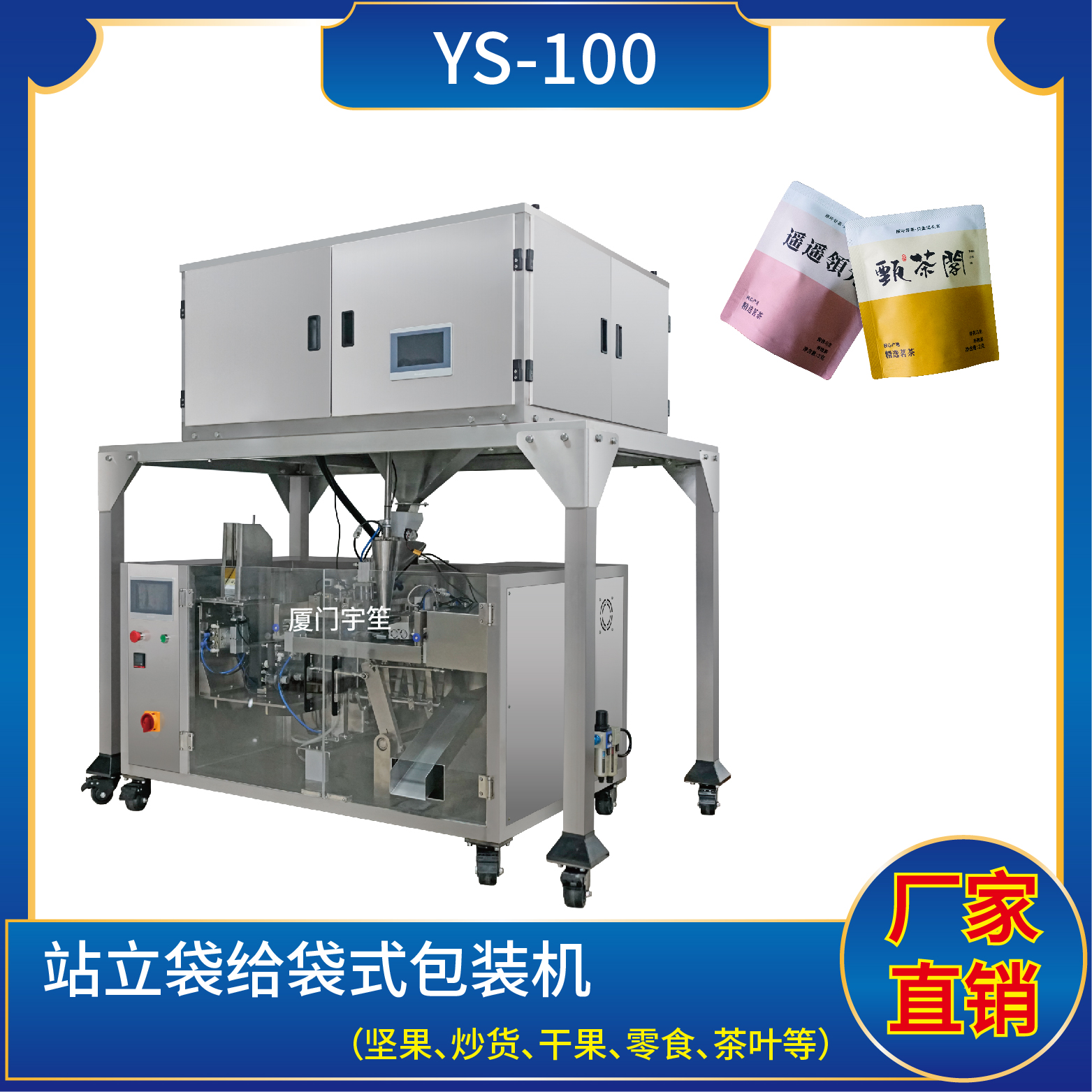

YP-SP100  給袋式包裝機（電子秤）

特  點 Characteristic

１、適用于食品、醫藥、化工、化妝品行業中顆粒、粉劑、液體、醬料等物品的計量包裝。

The machine is suitable for  the food, medicine, chemical industry, cosmetics industry of liquids , sauce of measurement packing.

２、適用站立袋、包裝流程全自動、無需人工操作。可根據充填物料的性質選配不同的下料結構

All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.

３、觸摸屏操作，PLC 控制，驅動步進電機控制袋長，性能穩定、調整方便、檢測準確。智能式溫控儀，PID調節，保證將溫度的誤差范圍控制在1℃以內。

The touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.

4、包裝材料：復合膜，如：純鋁，鍍鋁等預制袋。

Packing material:  composite film, such as: pure aluminum, aluminum plating and other prefabricated bags.

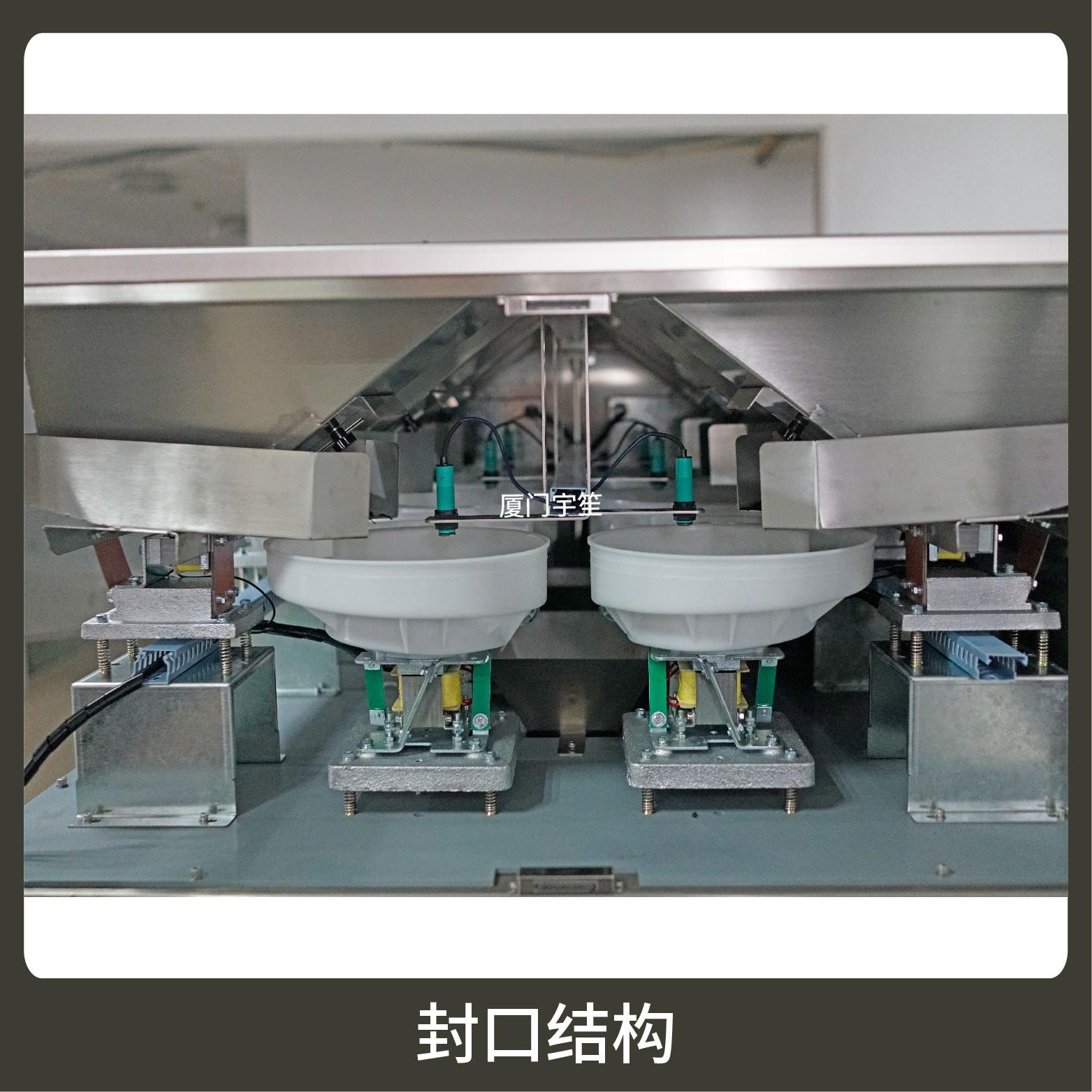

封口方式 Sealing Type

預置袋Prefab bag

技術參數

Technical Parameters

計量范圍：1 - 15 g（視物料特性而定）

Measuring Scope

制袋尺寸：長( L )  :  70 - 130 mm

Bag Size 寬( W )  :  70 - 120 mm

包裝速度：10 - 40 bags/min

Packing Speed

外型尺寸：1900 * 1160 * 1824 mm

Dimension ( L * W * H )

整機重量：200 kg

Weight

總 功 率：220V / 50-60Hz / 2.6kw

Total Power
