１、適用于食品、醫藥、化工、化妝品行業中顆粒、粉劑、液體、醬料等物品的計量包裝。

The machine is suitable for  the food, medicine, chemical industry, cosmetics industry of liquids , sauce of measurement packing.

２、成品雙出，速度快，包裝流程全自動，無需人工操作。可根據充填物料的性質選配不同的下料結構。

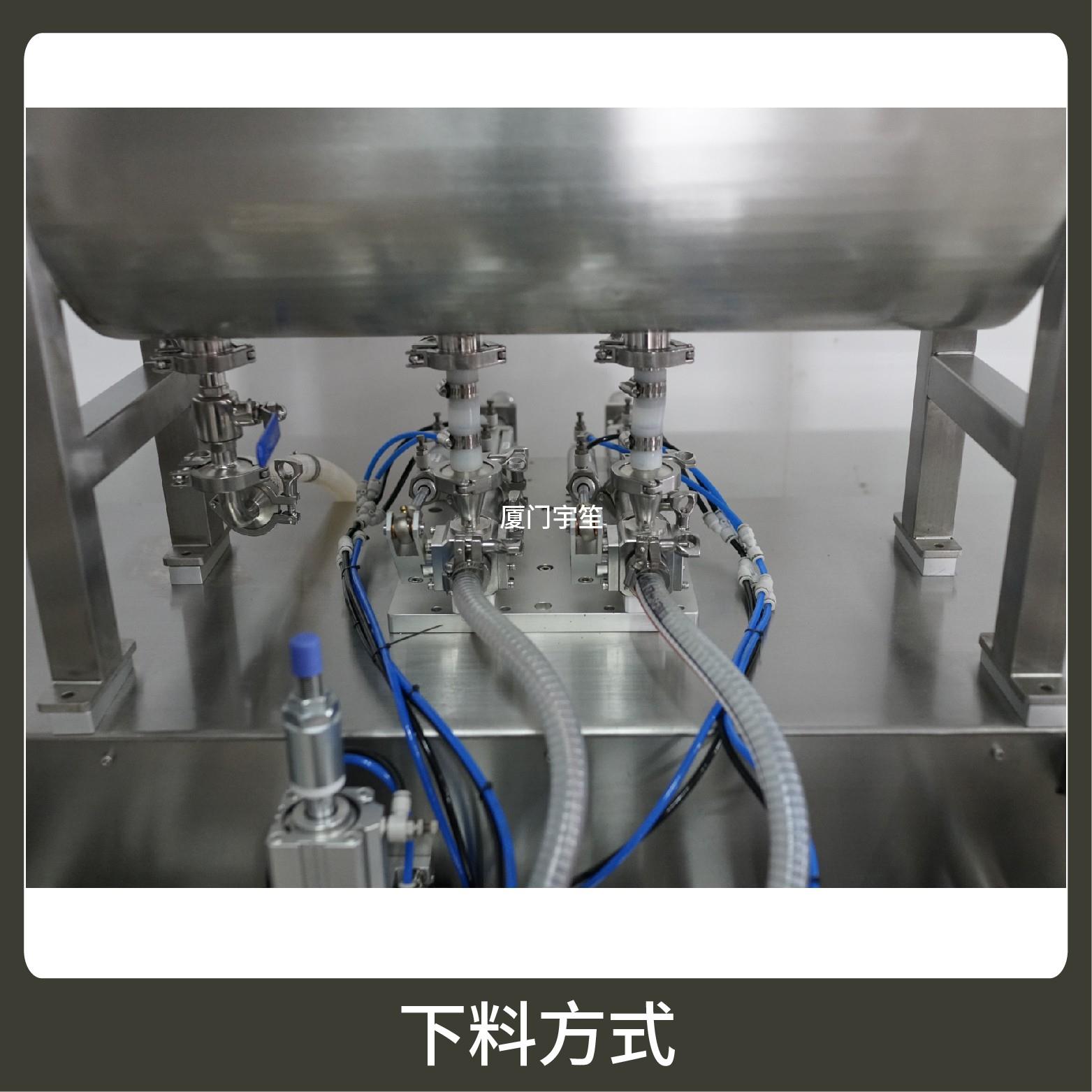

Double-out finished products, fast speed, automatic packaging process, no manual operation. Different feeding structures can be selected according to the nature of filling materials.

3、采用觸摸屏操作，PLC控制，封口溫度自動補償，控溫精準，封口美觀大方。

It adopts touch screen operation, PLC control, automatic compensation of sealing temperature, precise temperature control, and beautiful sealing.

4、包裝材料：PE復合膜，如：純鋁，鍍鋁等預制袋。

Packing material： PE composite film, such as： pure aluminum, aluminum plating and other prefabricated bags.

計量范圍：10-100g（視物料特性而定）

Measuring Scope

預制袋：長 ( L ) ：80-180mm

Prefab bag   寬 ( W ) ：55-120mm

包裝速度：44-50bags / min（視物料特性而定）

Packing Speed

外型尺寸：2192* 1356 * 1738 mm

Dimension  ( L * W * H )

整機重量：550kg

Weight

總 功 率：AC220V / 50 - 60Hz / 4.5kw

Total Power

氣       源：≥0.6Mpa

Gas source

１、適用于食品、醫藥、化工、化妝品行業中顆粒、粉劑、液體、醬料等物品的計量包裝。

The machine is suitable for  the food, medicine, chemical industry, cosmetics industry of liquids , sauce of measurement packing.
