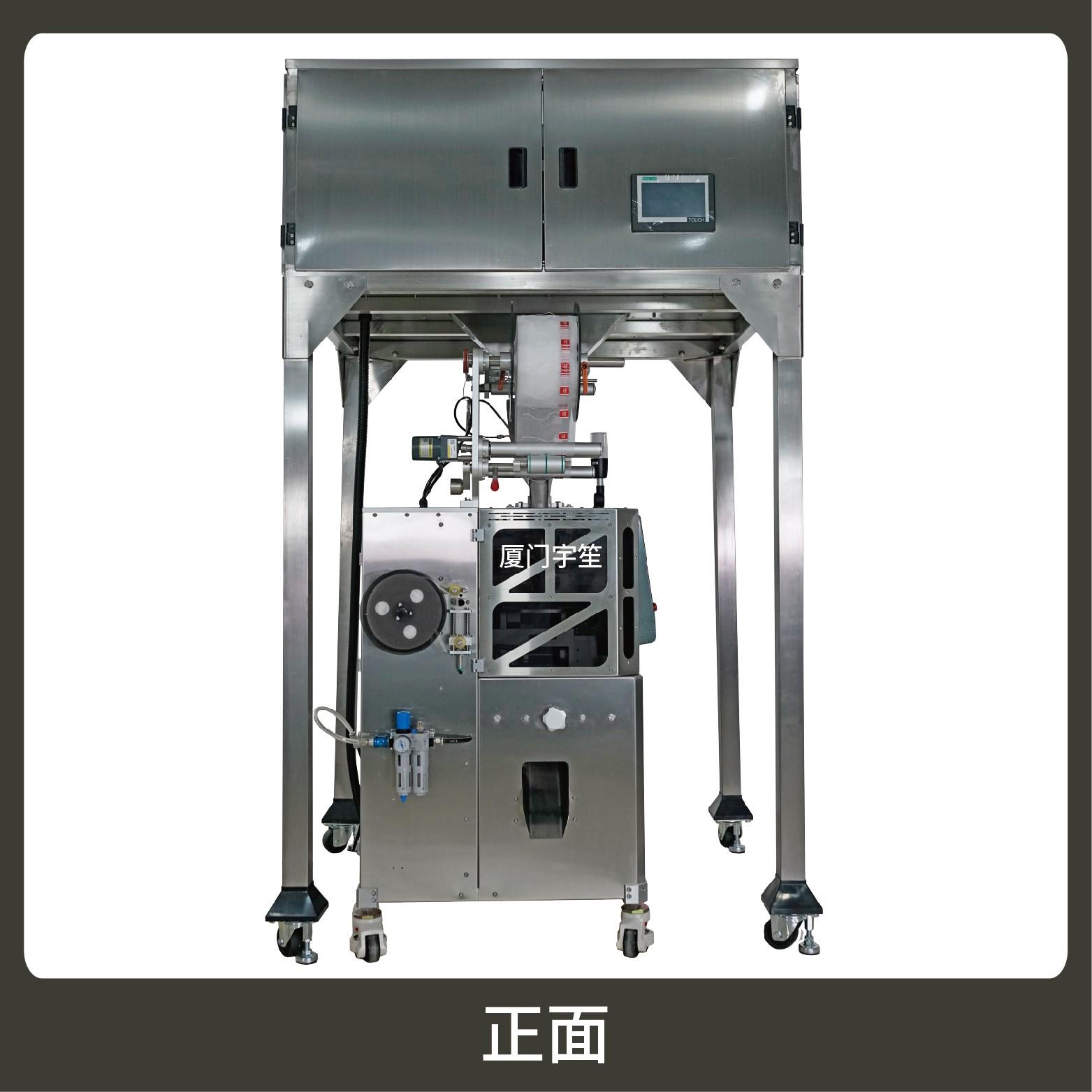

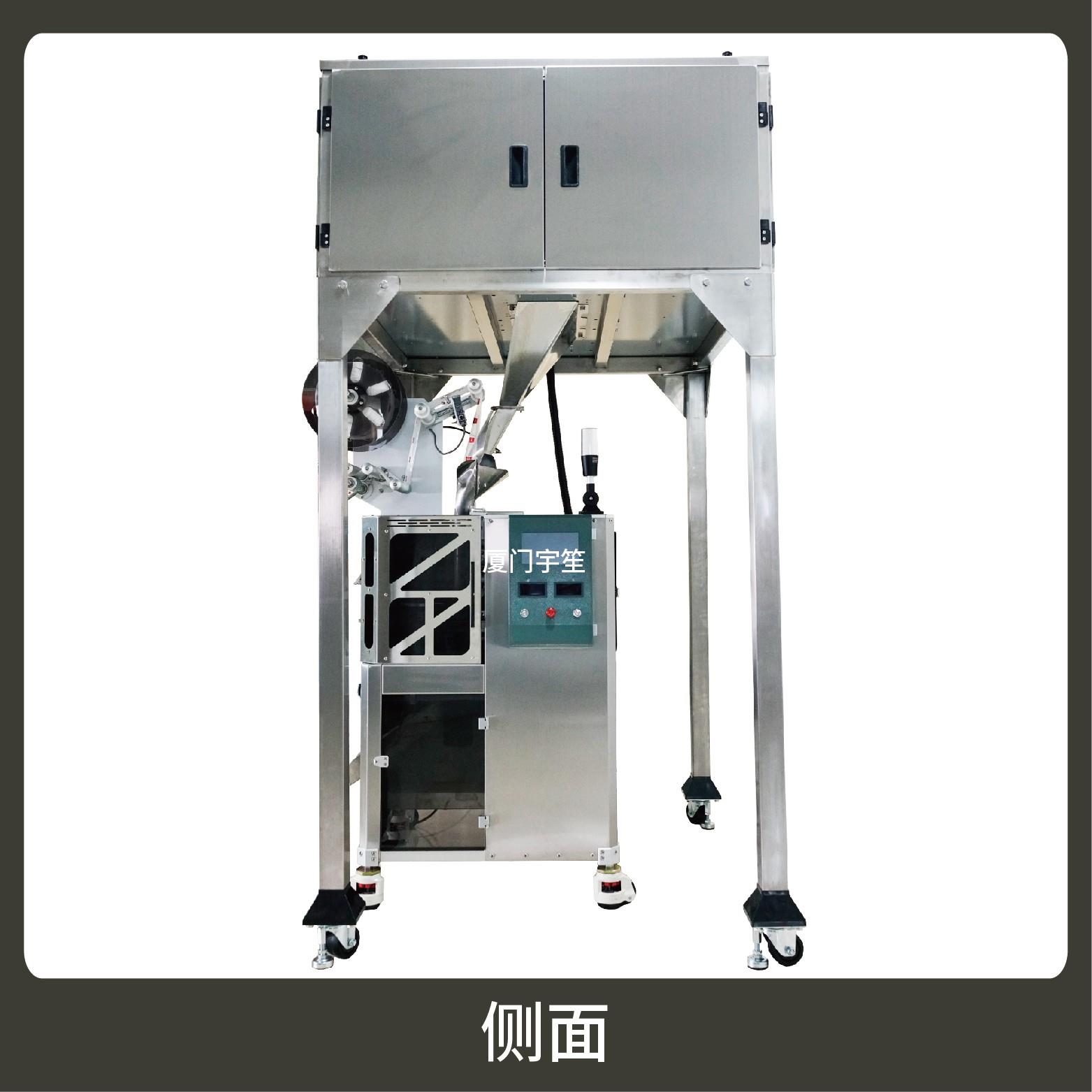

YS-ZF90X High-speed nylon triangle bag packing machine (electronic scale series)

YS-ZF90X 高速尼龍三角袋包裝機（電子秤系列）

特  點 Characteristic

1、適用于綠茶、紅茶、花茶、咖啡、中國茶、健康茶、中藥茶、顆粒等。

The machine is suitable for the green tea,black tea,scented tea,coffee,Chinese tea,health tea,herbal tea,granule and so on.

2、可用于平面袋包裝、三角立體包裝等形式包裝袋。

This unit can perform either flat bag or triangle tea bag.

3、整機可自動完成下料、計量、制袋、封口、切斷、計數、成品輸送等功能。The machine can automatically finish blanking,measuring,bag making,sealing,cutting,counting,finished product conveyor and other functions.

4、選用進口超聲波封口，電子稱計量下料方式，封口牢固，下料準確。

Adopt the imported ultrasonic sealing,use the electronic scale metering to cutting-stock,perfect sealing,cutting-stock accuracy.

5、包裝材料：尼龍、無紡布、玉米纖維。

Packing material：Nylon,Polyester net,non-woven fibries,corn fiber(Food grade).

封口方式 Sealing Type

立體封口

Three-dimensional sealing

技術參數

Technical Parameters

計量范圍：1 - 10 g

Measuring Scope

制袋尺寸：長 ( L )  :  45 - 90mm

Bag size   寬 ( W )  :  40 - 90mm

包裝速度：40-90 bags/min

Packing Speed

外型尺寸：1320 * 1366* 2160 mm

Dimension ( L * W * H )

整機重量：260-410 kg

Weight

總 功 率：AC220V / 50Hz / 2.0kw

Total Power

氣    源：≥0.6m3/ min

Gas source
